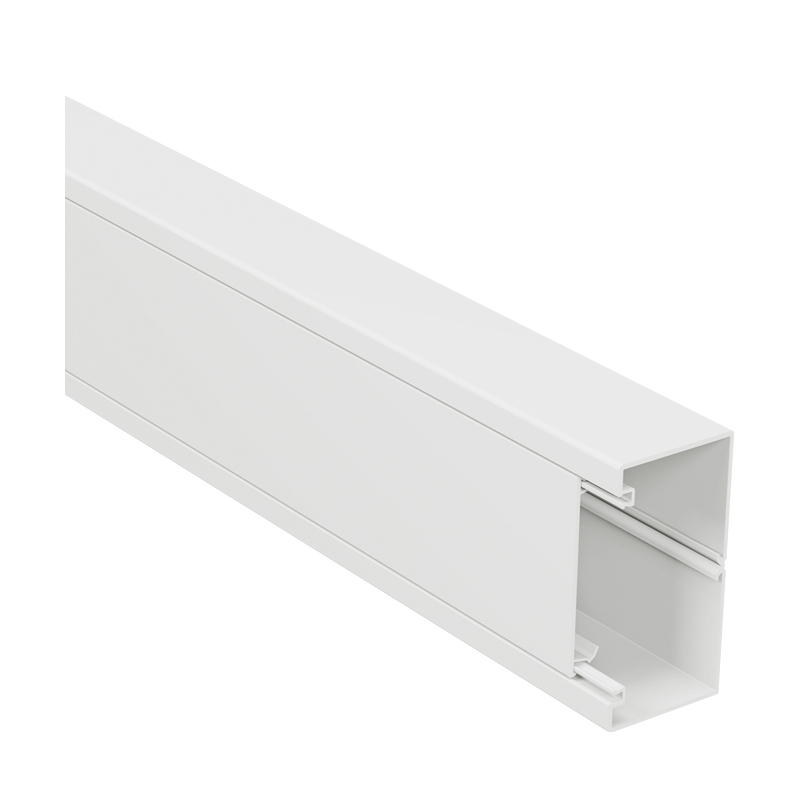

Universal DLP-S trunking 100x50mm – 1 compartment – with 75mm rigid cover
SKU : LG638038
86,21 MAD
Description
“Possibility of adapting a partition wall – Compatible with the Mosaic and Arteor ranges of wiring devices – or Belanko – Mallia and Synergy (with a universal support ref 638005) – Oblong perforation to facilitate leveling of the trunking – Meets the reliability, safety and technical performance requirements in accordance with standard EN 50085-2-1 – Colour: white – Not suitable for outdoor use – Fixing by: plugs for immediate fixing (ref. 0 308 99) – or DLP quick plugs (ref. 0 308 97) – or screws – nails… – Can be installed in commercial and residential buildings”
Features
Technical Specifications
| Width | 100 mm |
|---|---|
| Depth | 50 mm |
| Length | 2000 mm |
| Number of Lids | 1 |
| Lid Included | Yes |
| Lid Width 1 | 75 mm |
| Symmetrical | Yes |
| Type Rectangular | Yes |
| Material | Plastic |
| Material Quality | Polyvinyl Chloride (PVC) |
| Halogen-Free | No |
| Antimicrobial Treatment | No |
| Surface Treatment Type | Untreated |
| Color | White |
| RAL Number | 9003 |
|---|---|
| Back Panel Finish (Interior) | Perforated |
| Protective sheet | Yes |
| Number of plug-in partitions | 1 |
| With conduit connector | No |
| Floor mounting perforation | Yes |
| Top mounting type | Interior |
| With cable retaining clip | No |
| Useful cross-section | 4224 mm² |
| Protection class (IP)IP40 | |
| Impact resistance (IK) | IK07 |
| Use/installation temperature | -5-60 °C |
| Storage temperature | -25-60 °C |
Données environnementales
Aucune donnée environnementale disponible.
Documentation
Aucune documentation disponible.
